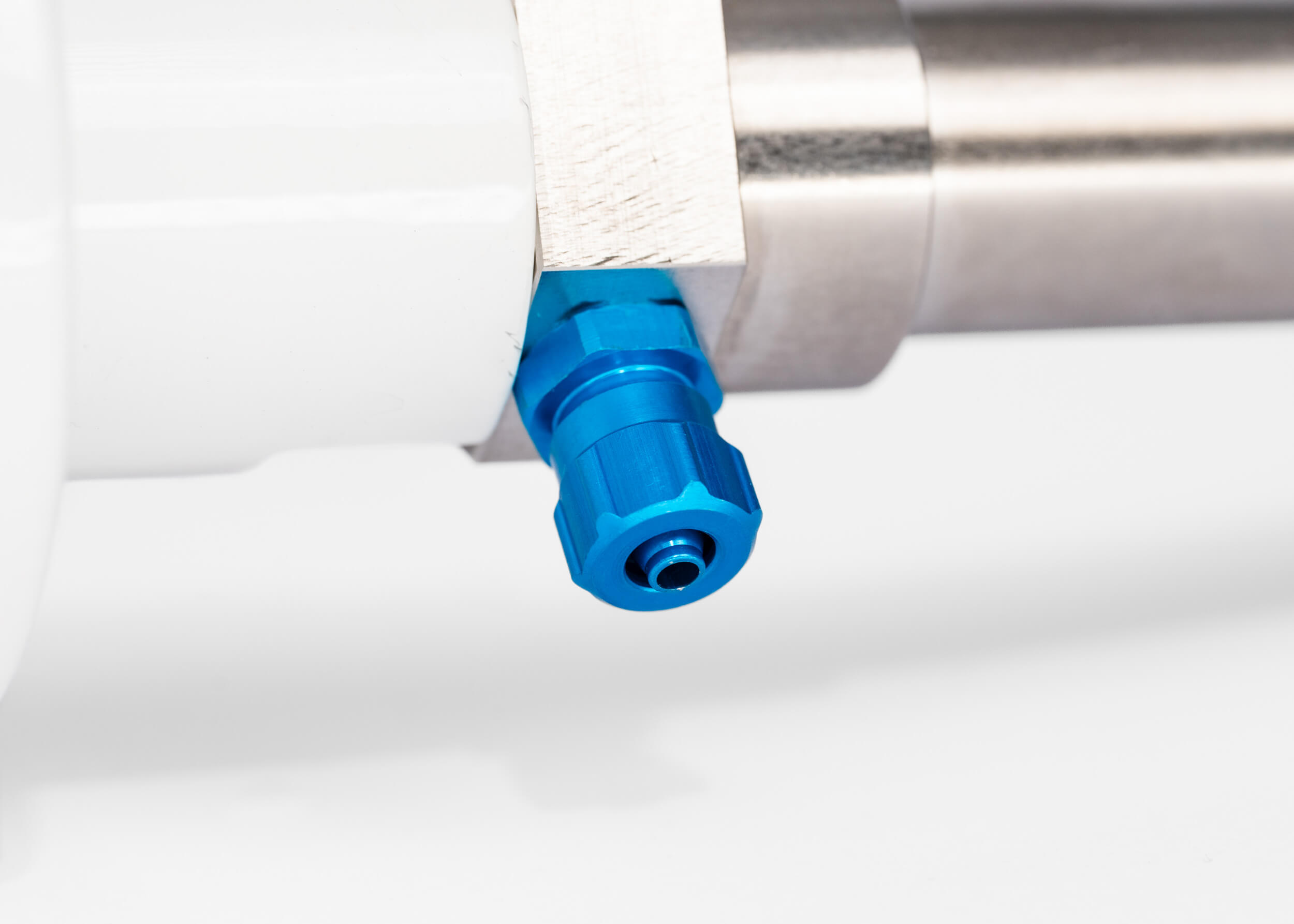

Oxygen Probe CarboProbe ST E

THIS PROBE IS 100% COMPATIBLE WITH THE EUROTHERM/SE/BARBER-COLMAN PROBE.
IT IS AN UPDATED VERSION, MORE ROBUST AND PATENTED.

Description

The CarboProbe ST E probe was developed for very difficult working conditions. It is based on the ZrO2 C3M electrolyte. This probe measures the oxygen concentration and offers excellent accuracy for the measurement of carbon potential (%C) and temperature (°C).

Patented design for more security in your worshop!



This probe is based on our ZrO2 mixed cell.

Senseur Mixte ZrO2

TECHNICAL CHARACTERISTICS

TECHNICAL CHARACTERISTICS
Output 0 to 1250 mv
Readout impedance This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher
Response time Less than 1 second
Thermocouple Type K, S or without
Operating temperature From 600°C (1100°F) to 1150°C (2100°F)
Mechanical shock Resists mild mechanical shock. Handle carefully
Available lengths 500mm (19.7”), 650mm (25.6”), 750mm (29.5”), 850mm (33.5”), 1000mm (39.4), 1200mm (47.2”), 1300mm (51.2”)
Reference air Uncontaminated dry air at maximum rate of 1-6 l/h
Cleaning air Uncontaminated dry air at maximum rate of 300 l/h
External diameter 25 mm, Inconel 600
ST dimension 2019
