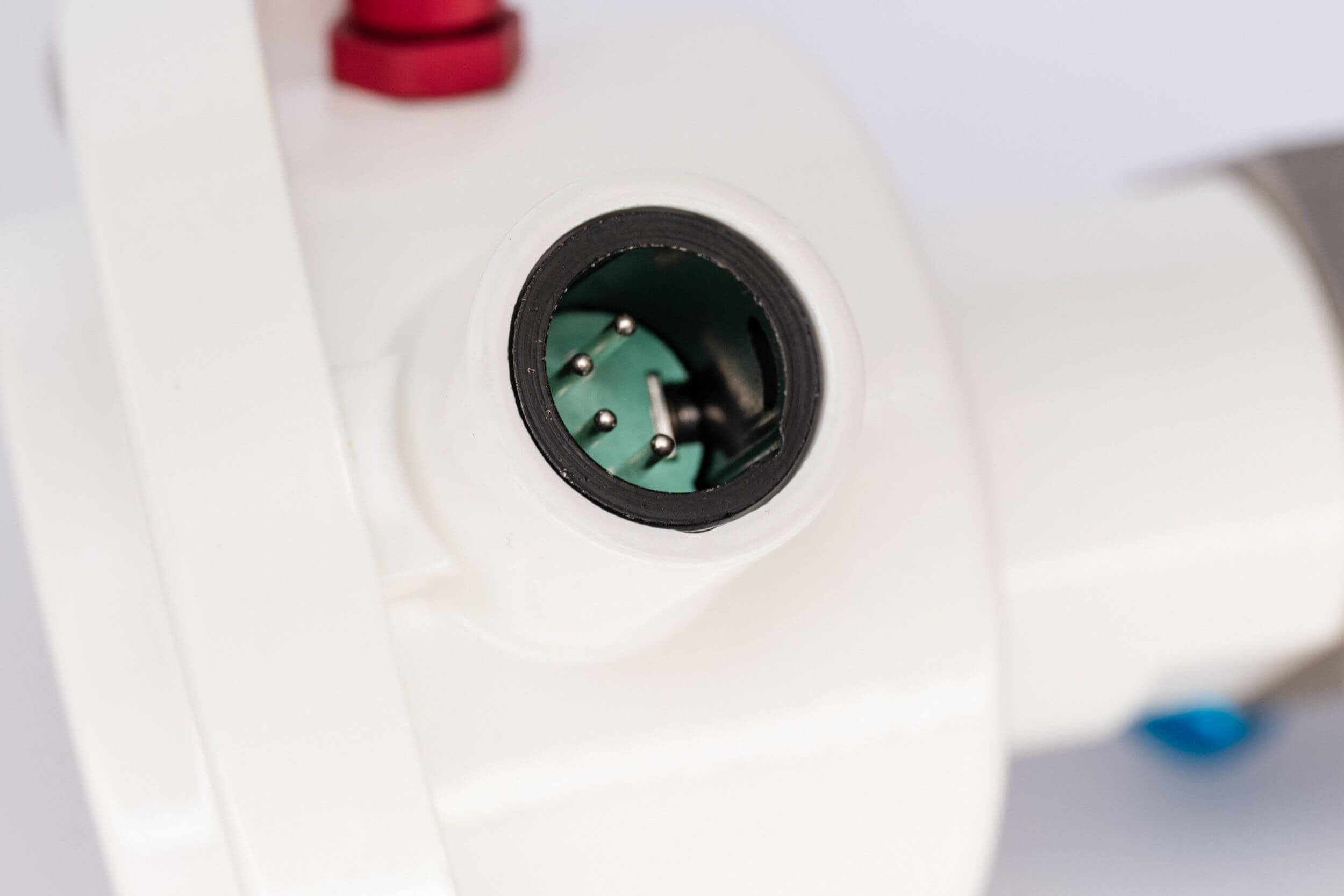

Oxygen Probe CarboProbe HT Pro with enhanced ceramic sheath (%O2)
Oxygen probe for ceramic furnaces, crematoria, and incinerators (up to 1700°C)
DESCRIPTION
The CarboProbeHT PRO is suitable for use at temperatures between 600°C to 1700°C (1100°F to 3100°F). It has a double ceramic protection tube for use in very difficult environments, such as incineration or cremation furnaces. It operates in a range from 100% O2 down to a pO2 of 10-24 bar at 700°C or 10-12 bar at 1300°C. It is equipped with a 1” thread and a calibration connector (blue).
This probe cannot be used for the measurement of oxygen in carburising mixtures.
MAINTENANCE
There are no maintenance parts required inside the sensor, if the platinum external connector is damaged it can be repaired without loss of signal quality.
This probe is equipped with a calibration connector (blue). Contact us for more information !
Works great with our ContrOx display and control module
This probe is based on our ZrO2 mixed cell.
Technical characteristics
| TECHNICAL CHARACTERISTICS | |
| Output | 0 to 1200 mv |
| Readout impedance | This probe should be used with controlling, recording and indicating instruments having input impedance of 10 megohms or higher |
| Response time | Less than 1 second |
| Thermocouple | R, S |
| Operating temperature | From 600°C (1100°F) to 1700°C (3100°F) |
| Mechanical shock | Resists mild mechanical shock. Handle carefully |
| Available lengths | 300mm (11.8”), 400mm (15.7”), 500mm (19.7”), 600mm (23.6”), 700mm (27.5”), 800mm (31.5”), 900mm (35.4”), 1000mm (39.4) |
| Reference air | Uncontaminated dry air at maximum rate of 1-6 l/h |
| External diameter | Ø25mm, Connection 1“ |
KEY FEATURES
• The most robust oxygen probe on the market with double ceramic protection
• Usable at temperatures from 600°C to 1700°C
• The probe can be used at any orientation for temperatures up to 1100 °C (2000°F)
• Probe should be placed vertically at high temperatures (above 1100°C)
• Every probe is 100% tested with certification, certificates are enclosed with each probe
Field of Application
• Suitable for incinerators, cremation equipments or harsh environnement
• Can be used to obtain efficient combustion in a kiln
• Can also be used to control reduction in a kiln
• The CarboProbe HT can be used in a closed-loop control system to regulate the air or fuel supply
