Maintenance Modules E-Series
Description
The E-Serie Maintenance Module is as CE compliant Module designed to supply reference air and/or purge air not only to all Econox CarboProbe, but all the other probes on the market.
They include one or two high quality flowmeters for very accurate measure and setup of the air flows, as well as a standard metallic enclosure (not for E501).
A pump with replaceable filter is integrated for better air quality.
Maintenance Module E501
Simple, open case module with one pump and one flowmeter for reference air only.
This module does not have purge air.
- 1 flowmeter for reference air
- Pump
- Size 20cm x 20cm x 10cm (7.9” X 7.9” X 3.9”)
- 5 meters of tubing

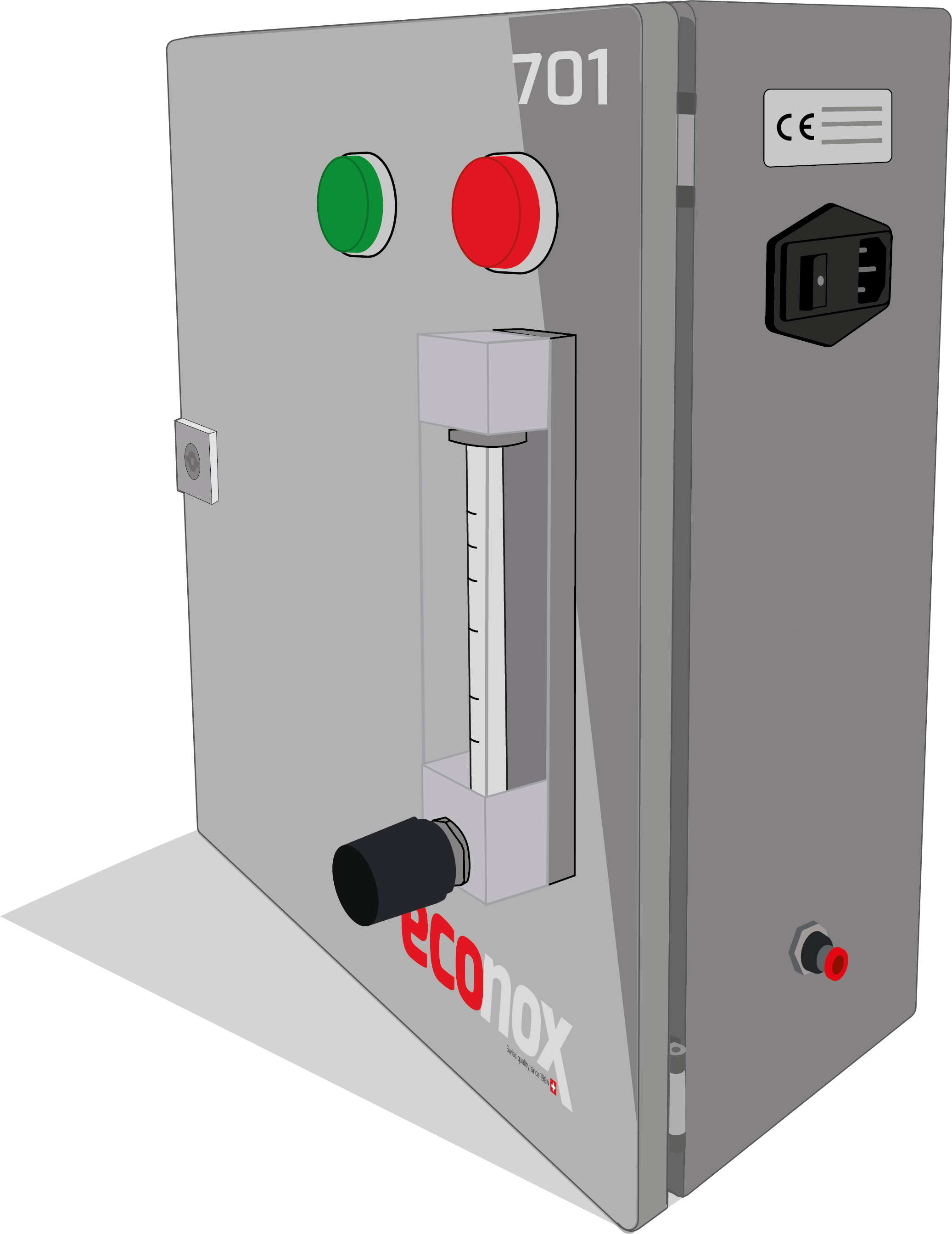

Maintenance Module E701
Simple maintenance module with one output for reference air only. This module can supply reference air to one probe only.
This module does not have purge air.
- High-end metallic enclosure
- 1 flow meter for reference air
- 110/220V to 24V converter
- Pump and filter
- Size 30cm x 40cm x 16cm (11.8” X 15.7” X 6.3”)
- 5 meters of tubing

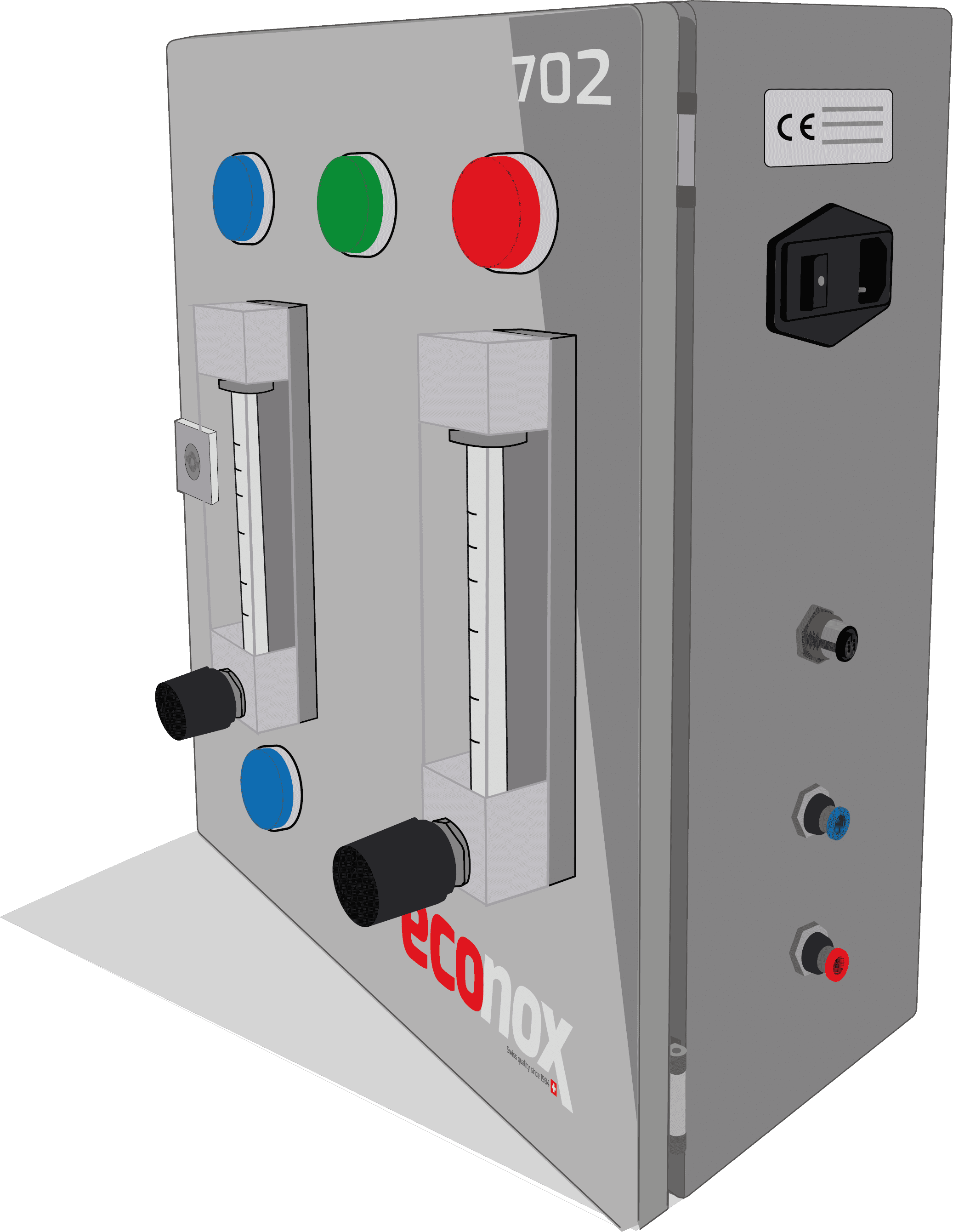

Maintenance Module E702
A simple and easy to set up maintenance module that supplies reference AND cleaning air to one heat treatment probe only. With manual purging (front panel button) or automatic purging through your PLC.
- High-end metallic enclosure
- 1 flowmeter for reference air
- 1 flowmeter for purging air
- 110/220V to 24V converter
- Manual or automatic purge through your PLC (24V output)
- Pump and filter
- Size 30cm x 40cm x 16cm (11.8” X 15.7” X 6.3”)
- 5 meters of tubing

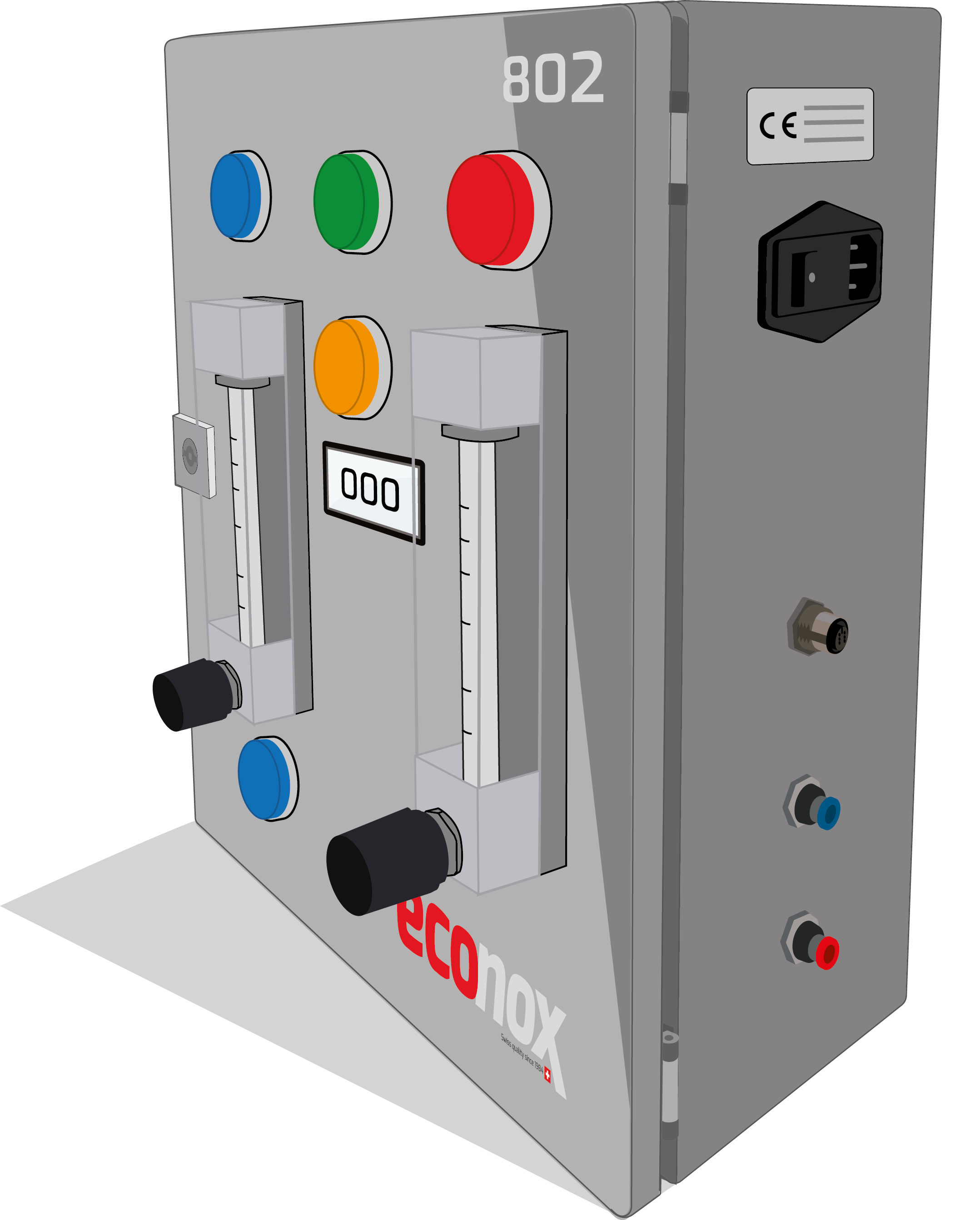

Maintenance Module E802
The most advanced Module for reference & purge air management.
It includes flow detection as well as flow rupture alarm
- High-end metallic enclosure
- 1 flowmeter for reference air
- 1 flowmeter for purging air
- 110/220V to 24V converter
- Manual or automatic purge through your PLC (24V output)
- Pump and filter
- Flow detection
- Flow detection alarm
- Size 30cm x 40cm x 16cm (11.8” X 15.7” X 6.3”)
- 5 meters of tubing
