Description of the
oxygen probe

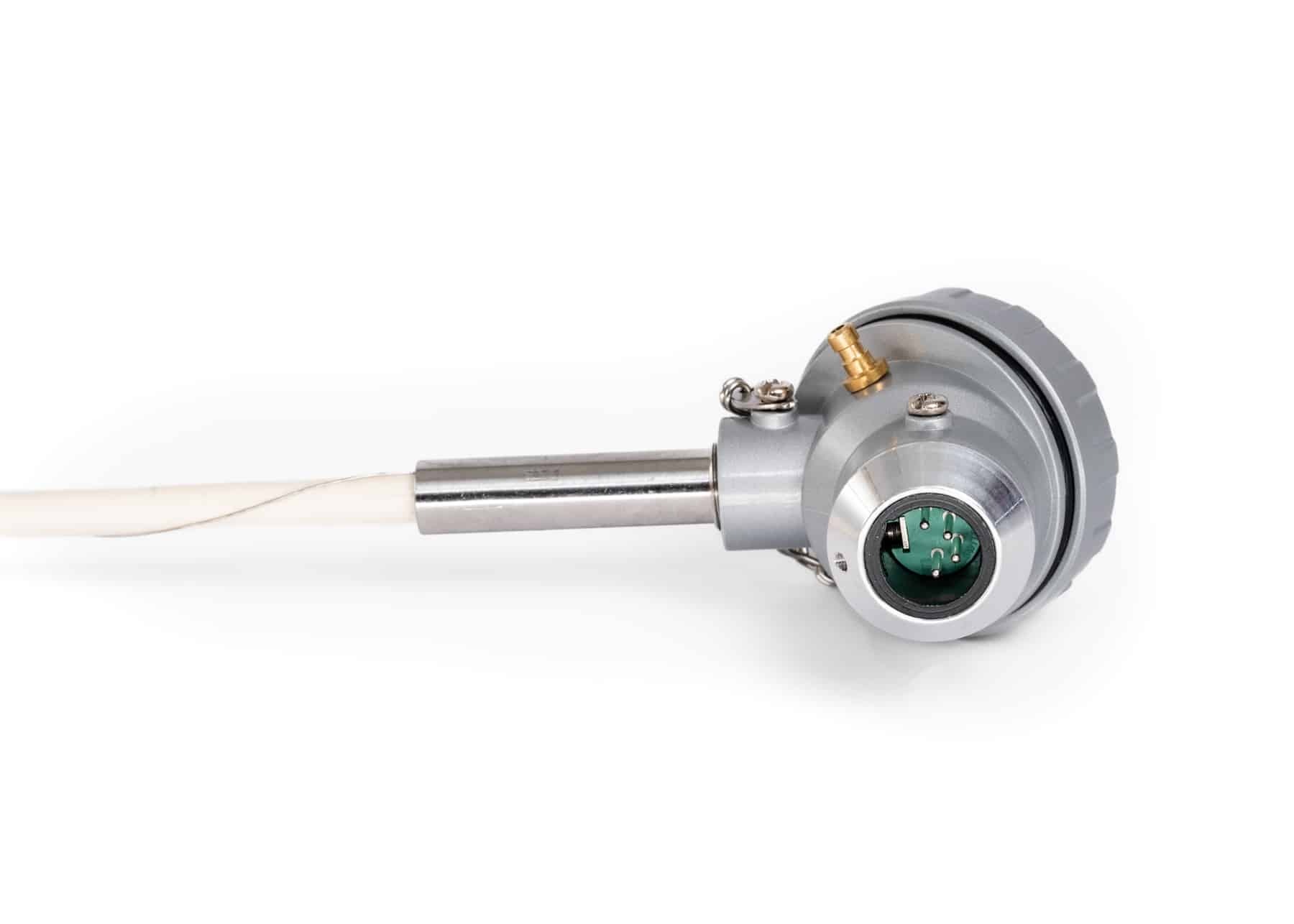

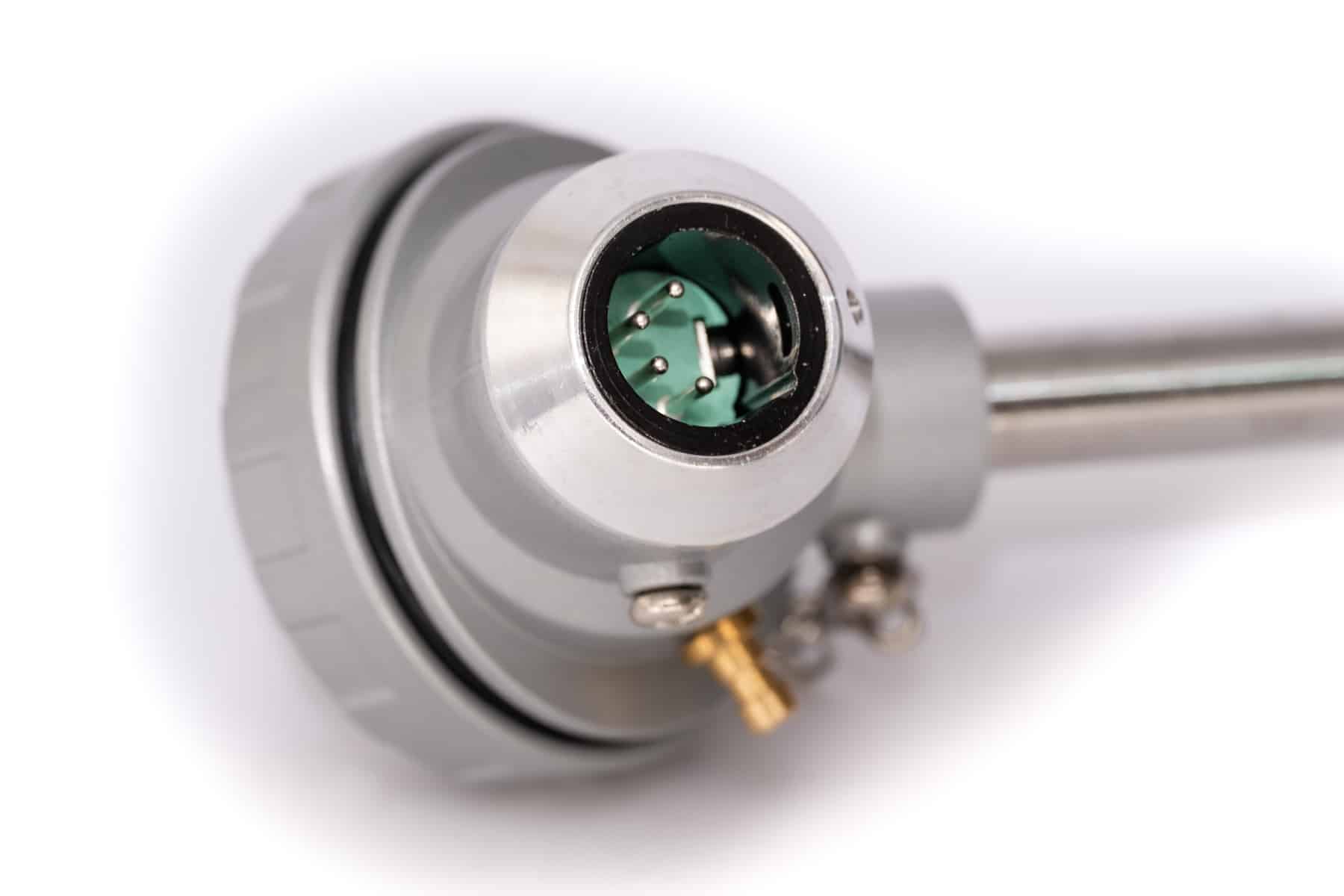

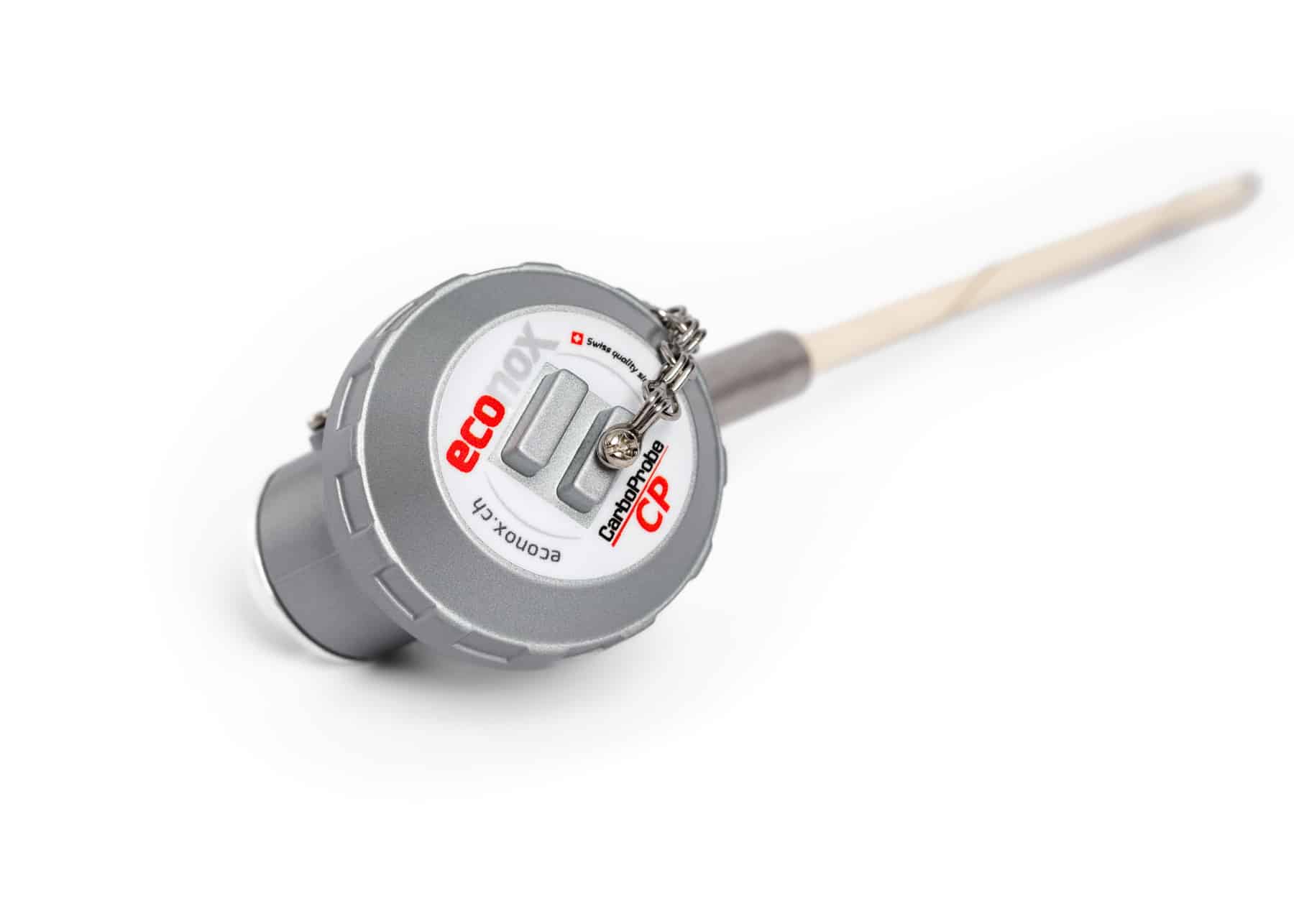

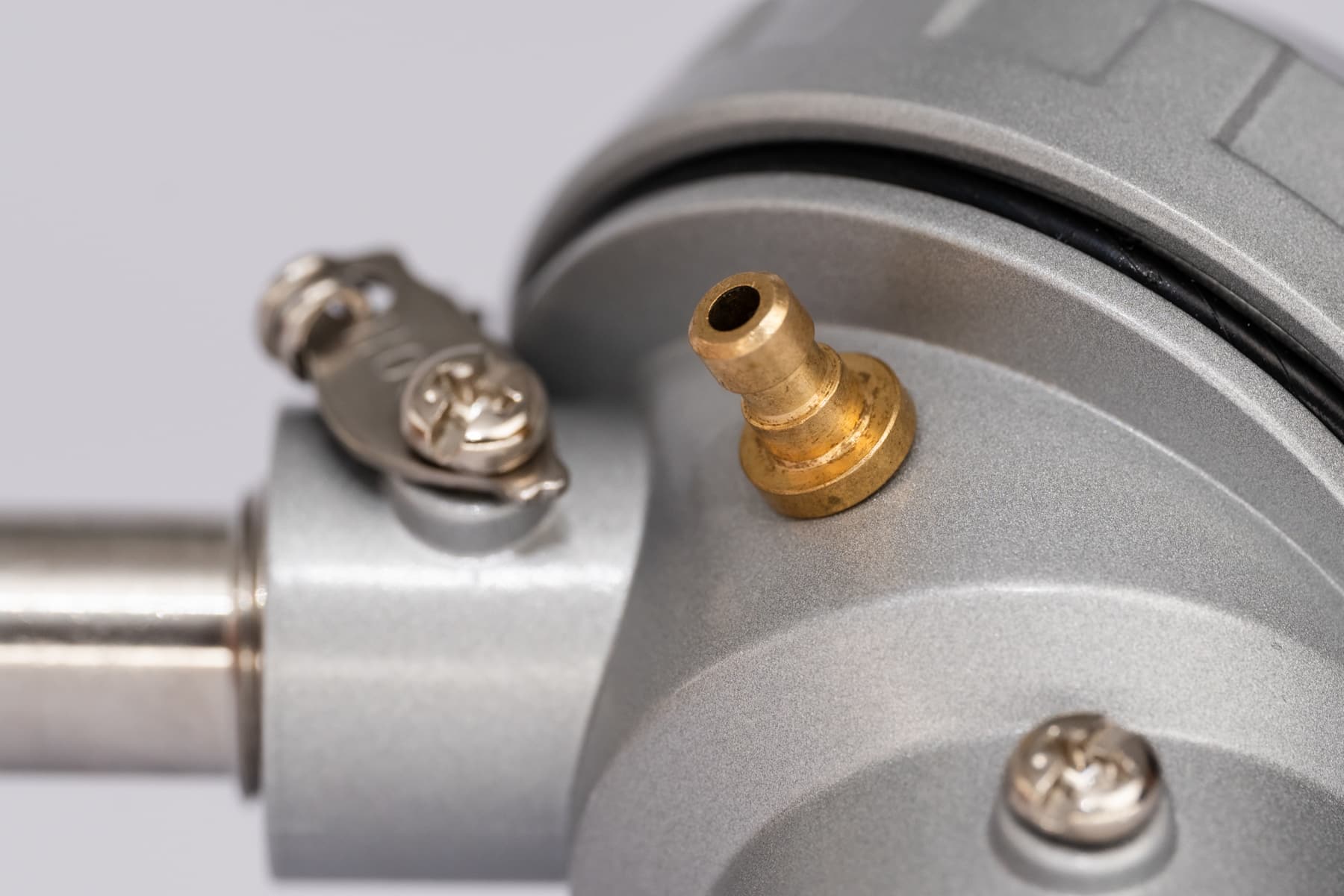

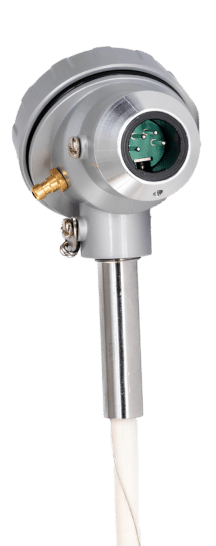

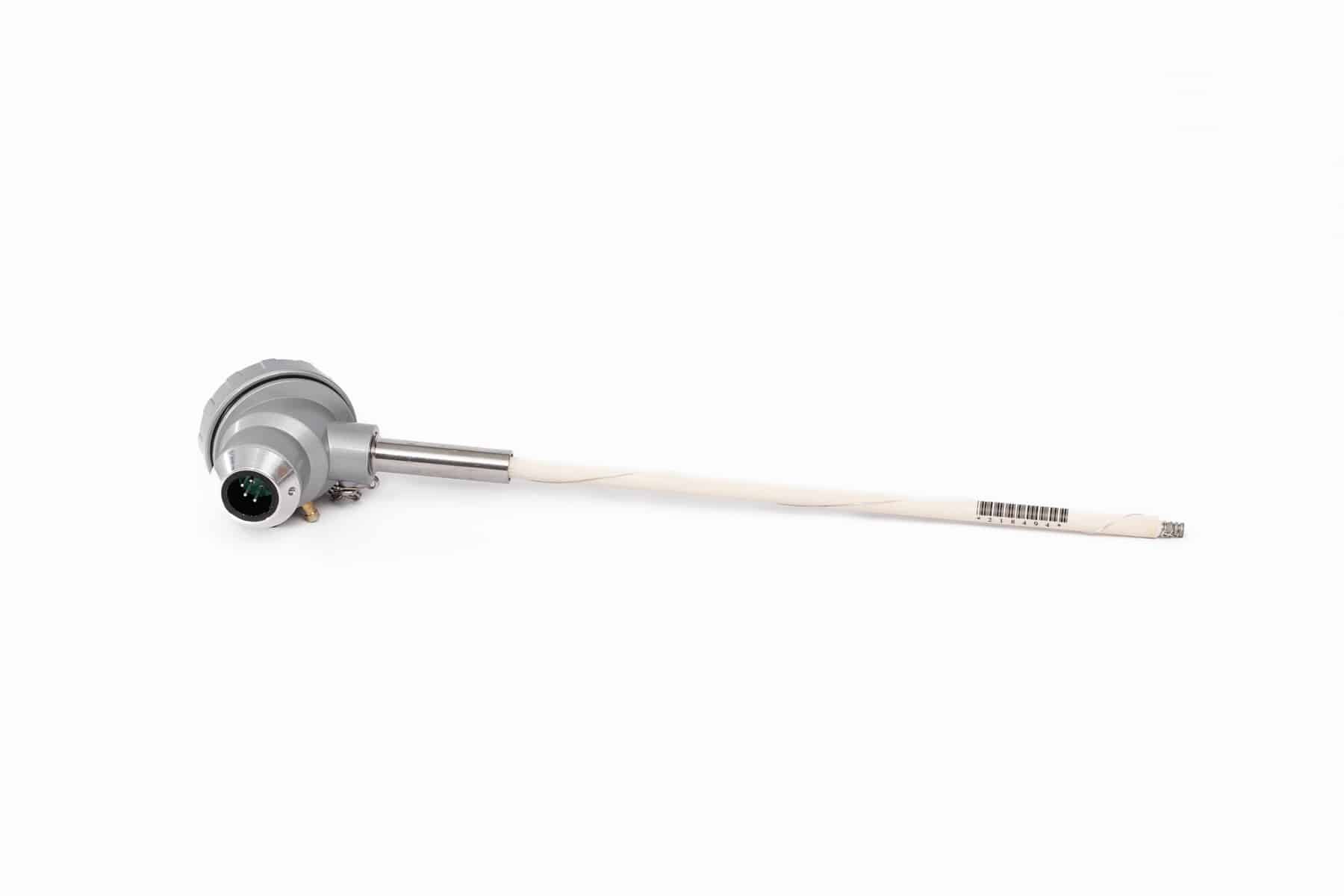

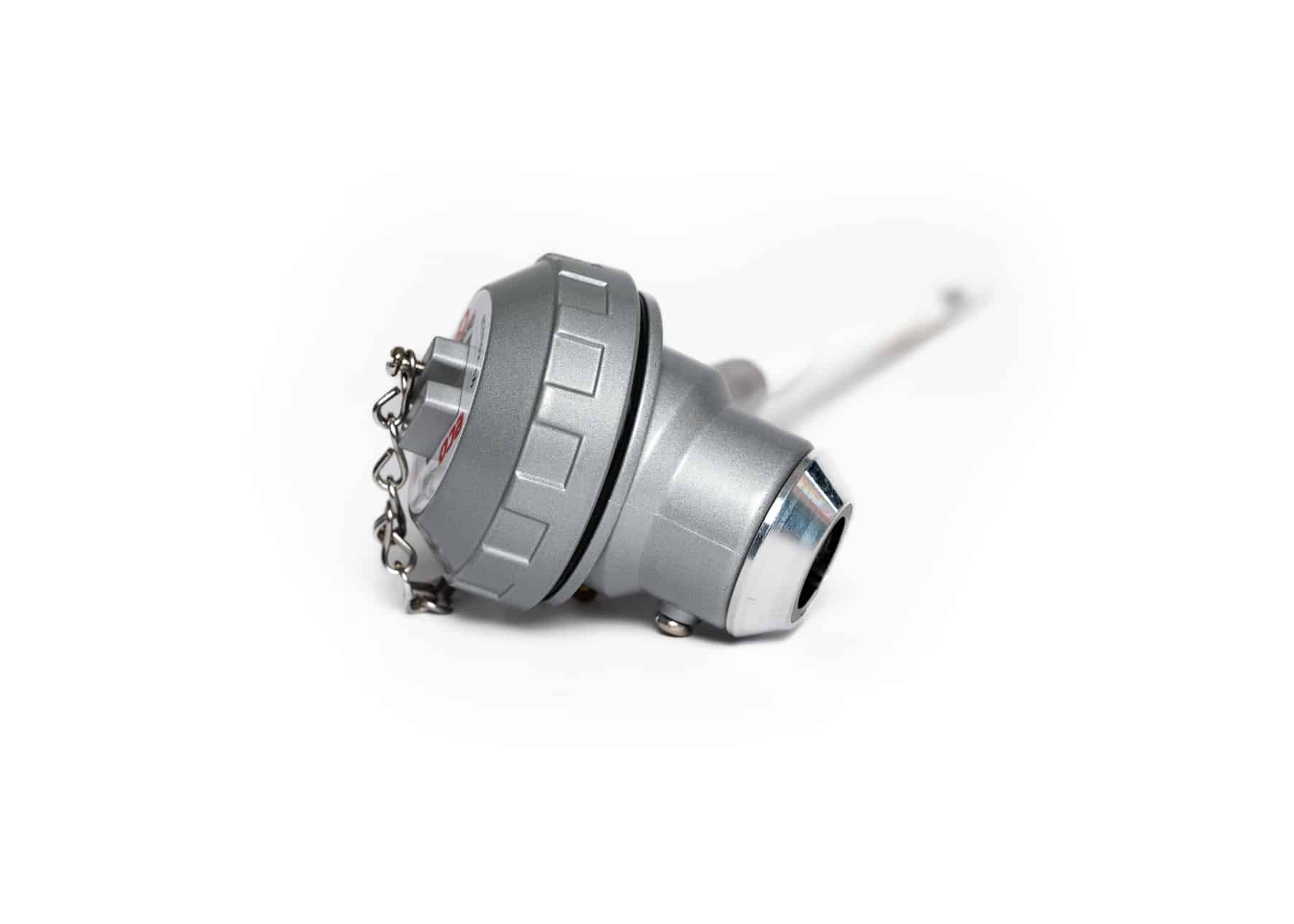

CarboProbe CP
The CarboProbe CP is a very simple, low cost oxygen probe with an easy-to-read digital meter displaying oxidation/reduction.
It is especially designed for potters.
NOT FOR INDUSTRIAL USE
Applications
The advantages of measurement of oxidation/reduction include:
- Fuel savings – An economical firing depends on supplying enough oxygen, without waste of energy from heating excess air.
- Reliable glaze colours – Knowing the right level of reduction every firing gives you the colours you want, firing after firing.
- Reduced air pollution – Use the CP Probe as a guide for stoking wood-fired kilns to reduce wood consumption and unnecessary ash and smoke.

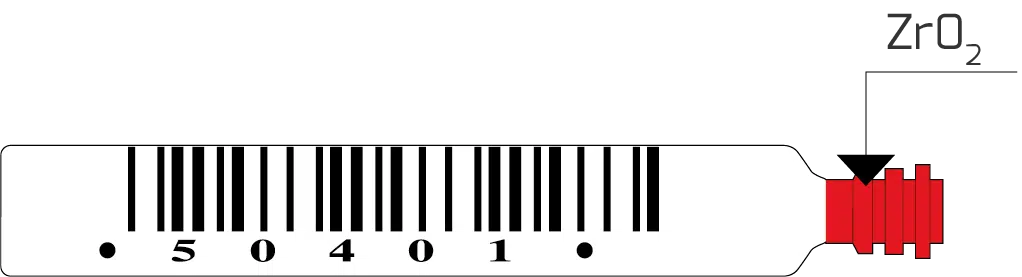

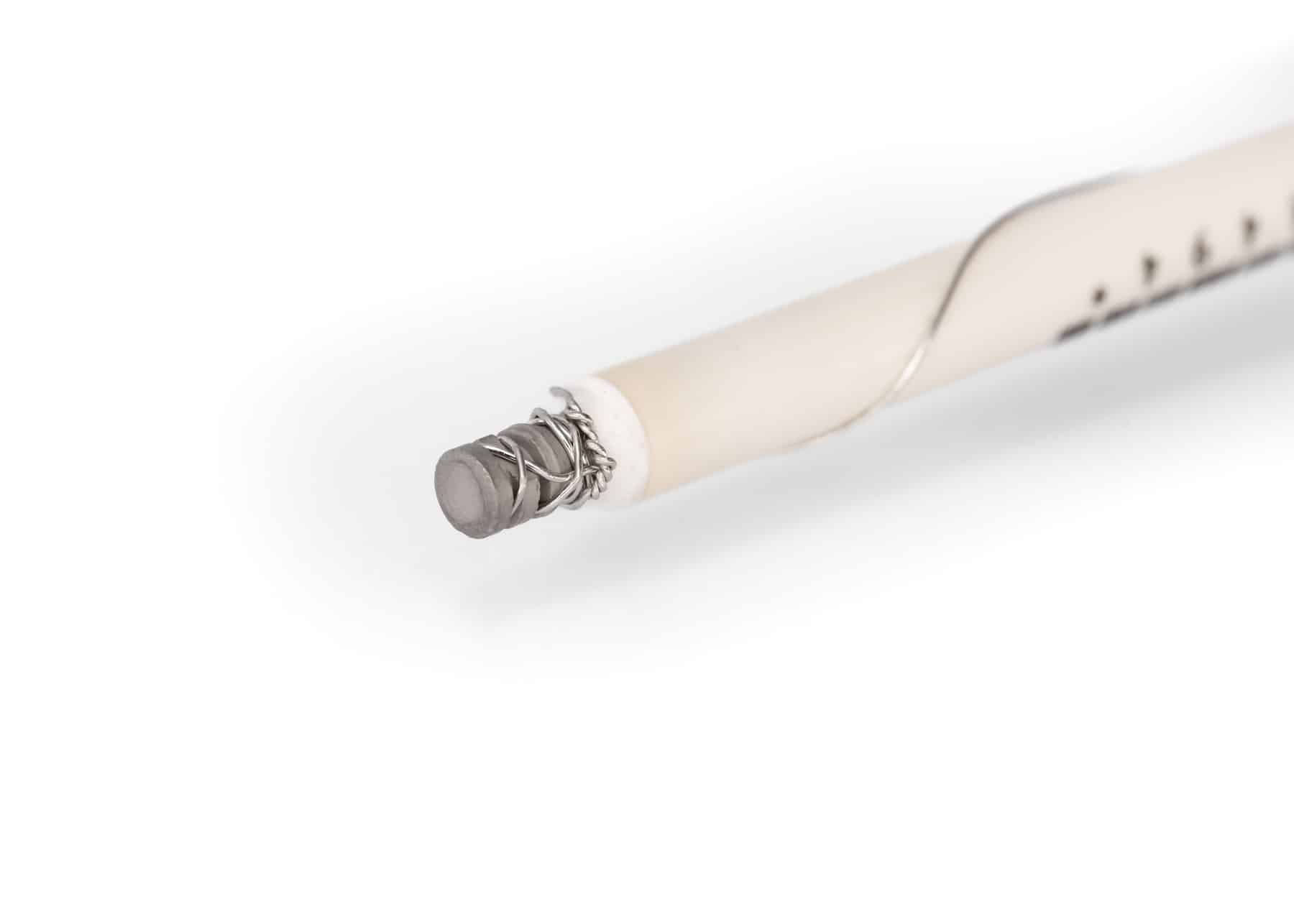

This probe is based on the ZrO2 zirconia oxygen sensor.
CarboProbe CP
key features
Technical
characteristics
Each of our probes is designed to meet specific needs, while offering the reliability and Swiss manufacturing quality characteristic of Econox.
Technical specifications
Accuracy
+- 2 mV
Response time
Less than 1 second
Operating temperature
From 600°C (1100°F) to 1700°C (3100°F)
Available lengths
200mm (7.9”), 300mm (11.8”) – Other lenghts on request
External diameter
8.5 mm
