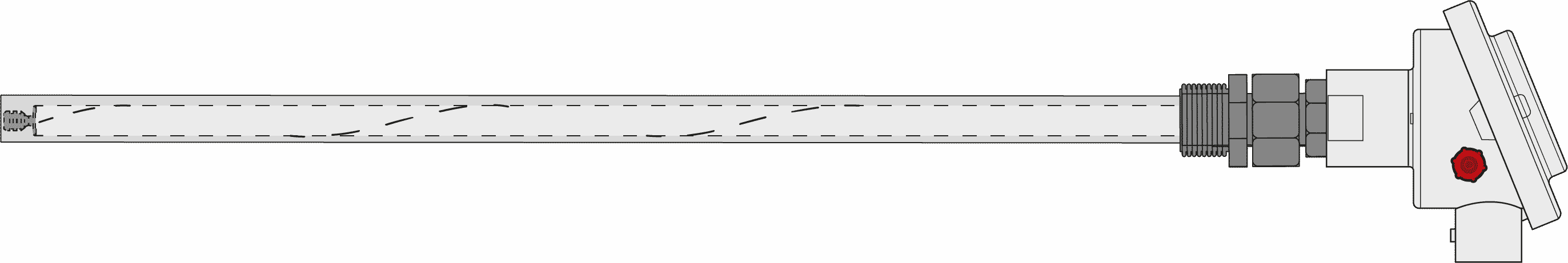

Oxygen Probe CarboProbe HT with ceramic sheath (%O2)
DESCRIPTION
Based on the ZrO2 C3M Electrolyte, the CarboProbe HT probe can handle temperatures up to 1700°C. All parts exposed to high temperatures are ceramic or platinum. This probe has a robust construction with a 15 mm diameter ceramic tube that protects the internal measurement device. This probe measures the oxygen concentration.
This probe cannot be used for the measurement of oxygen in carburising mixtures.
MAINTENANCE
There are no maintenance parts required inside the sensor, if the platinum external connector is damaged it can be repaired without loss of signal quality.
Technical characteristics
| TECHNICAL CHARACTERISTICS | |
| Output | 0 to 1200 mv |
| Readout impedance | This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher |
| Accuracy | +- 2 mV in normal operating range |
| Response time | Less than 1 second |
| Thermocouple | R, S |
| Operating temperature | From 600°C (1100°F) to 1700°C (3100°F) |
| Mechanical shock | Resists mild mechanical shock. Handle carefully |
| Available lengths | 300mm (11.8»), 400mm (15.7»), 500mm (19.7»), 600mm (23.6»), 700mm (27.5»), 800mm (31.5»), 900mm (35.4»), 1000mm (39.4), 1100mm (43.3») |
| Reference air | Uncontaminated dry air at maximum rate of 1-6 l/h |
| External diameter | 15 mm |
