ControX V 2.0 module (%O2, ppm O2)

Description

The ControX V2.0 module offers calculation and display of oxygen concentration (%O2, ppm, or log), and display of temperature (°C or °F), in one compact package. Easily accessible connectors on the side of the module offer quick connection of analog outputs, 4-20 mA outputs, reference air, and cleaning air (CarboProbe LT only). A USB port is included as standard.

• Works with our CarboProbe HT, CarboProbe DS and CarboProbe CP
• Measure of %O2,  ppm O2 and LOG
• Output signal 4 — 20 mA linearilized signal

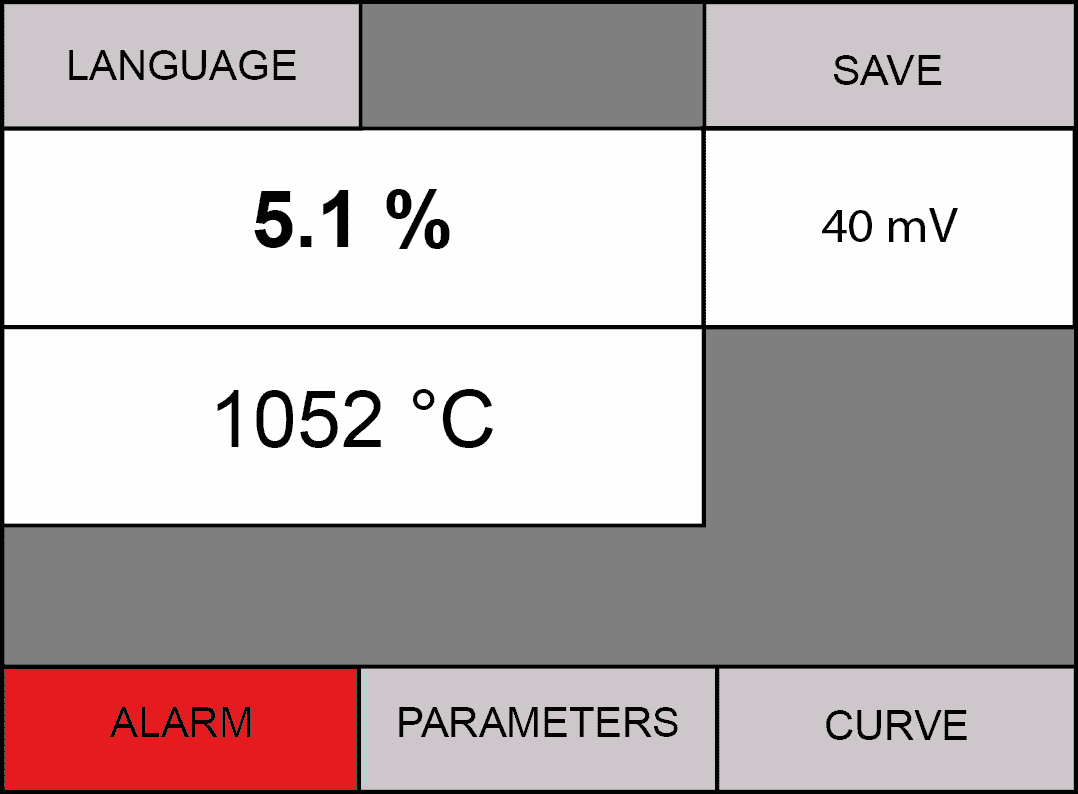

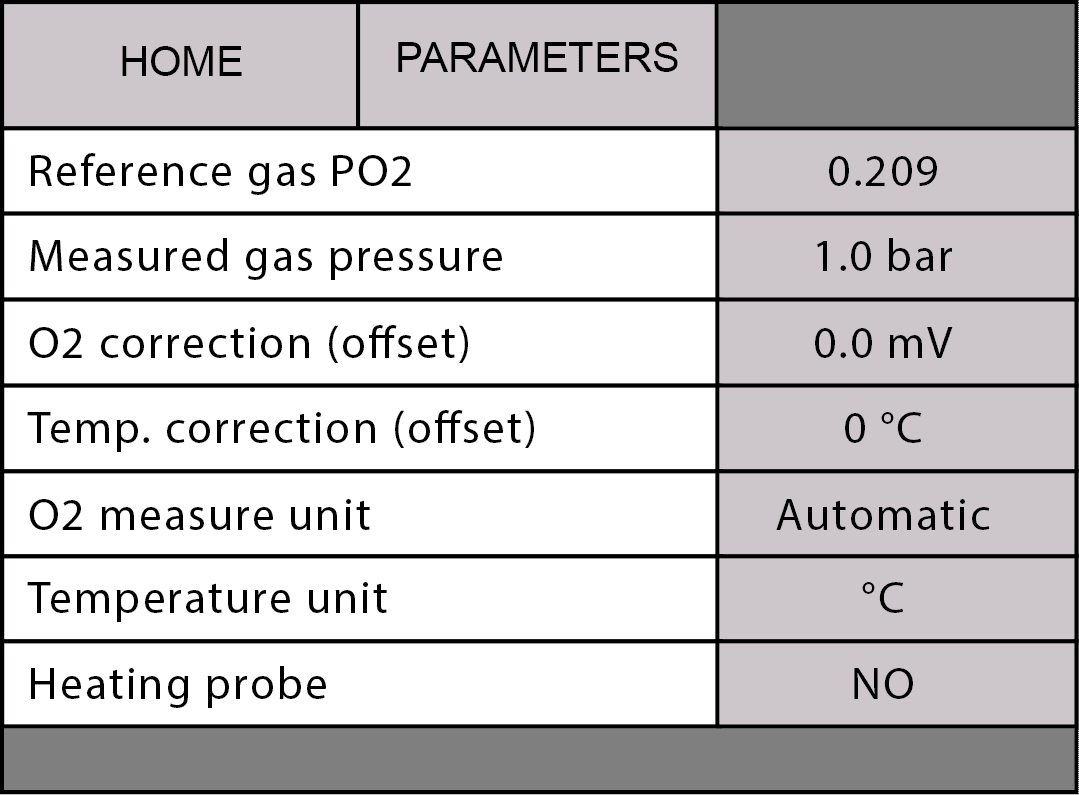

• User interface with touch-screen
• Pump for reference air
• 220V power outlet with switch
• Power supply with switch
• Data export to USB key
• Color touchscreen
• Size 30cm x 40cm x 16cm

• Regulation of the probe heating element (CarboProbe LT)
• Automatic purging system with adjustable purging time and hold time (CarboProbe LT)
• External inlet for Nitrogen cleaning gas (CarboProbe LT)
• Air or nitrogen can be used as cleaning gas (CarboProbe LT)
